Setting Up Program Parameters

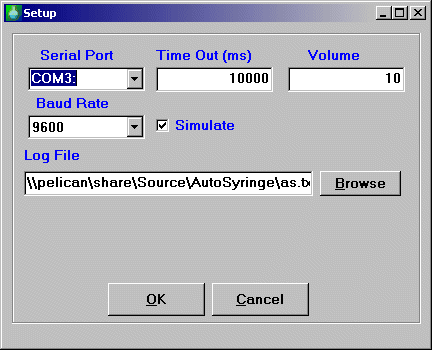

Go to the file | Setup screen:
Serial Port: Typically, this can take COM1 to COM4, depending on which port your LPC is connected to.
Time out: 10000 miliseconds should be sufficient to determine if the LPC has stopped responding.
Volume: The default volumn to sample by the LPC.
Baud Rate: You should set this to the same baud rate as your LPC.
Simulate: When checked, no actual communications with the LPC takes place. You can use simulation to try out the software (no license required) or to debug your script.
Log file: In case of problems, specify a log file. This log file can be emailed to us for post-mortem analysis.
